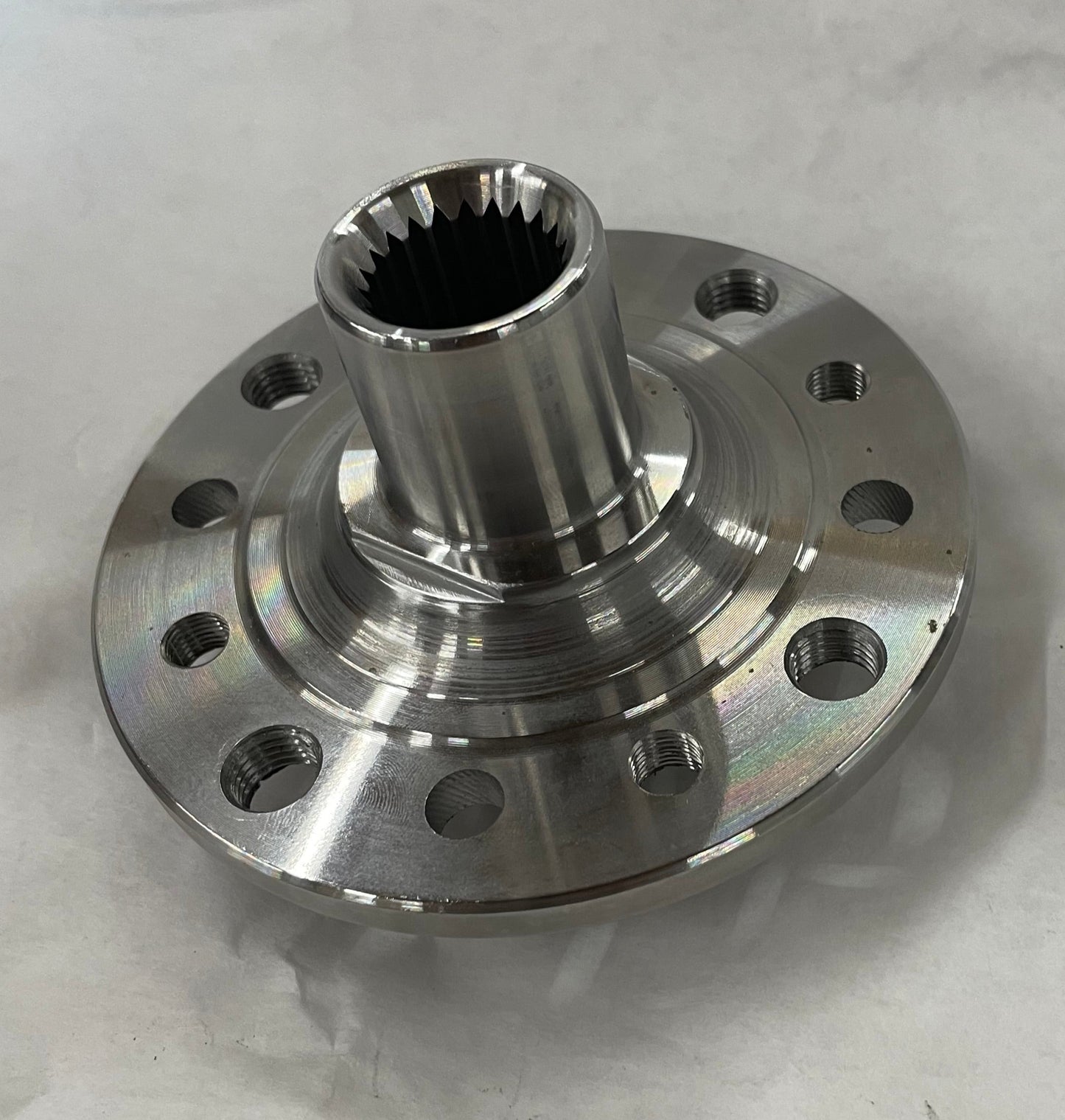

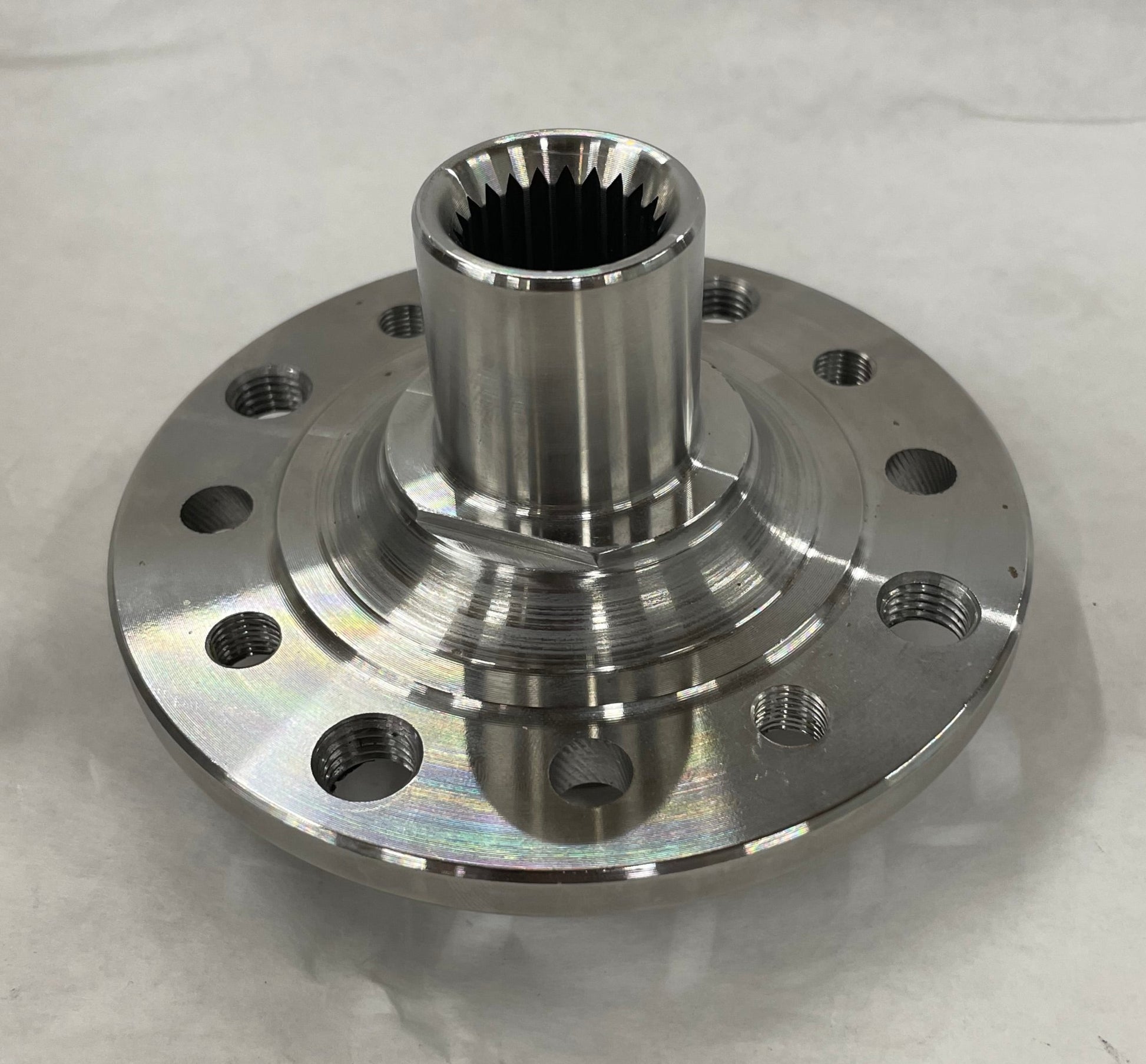

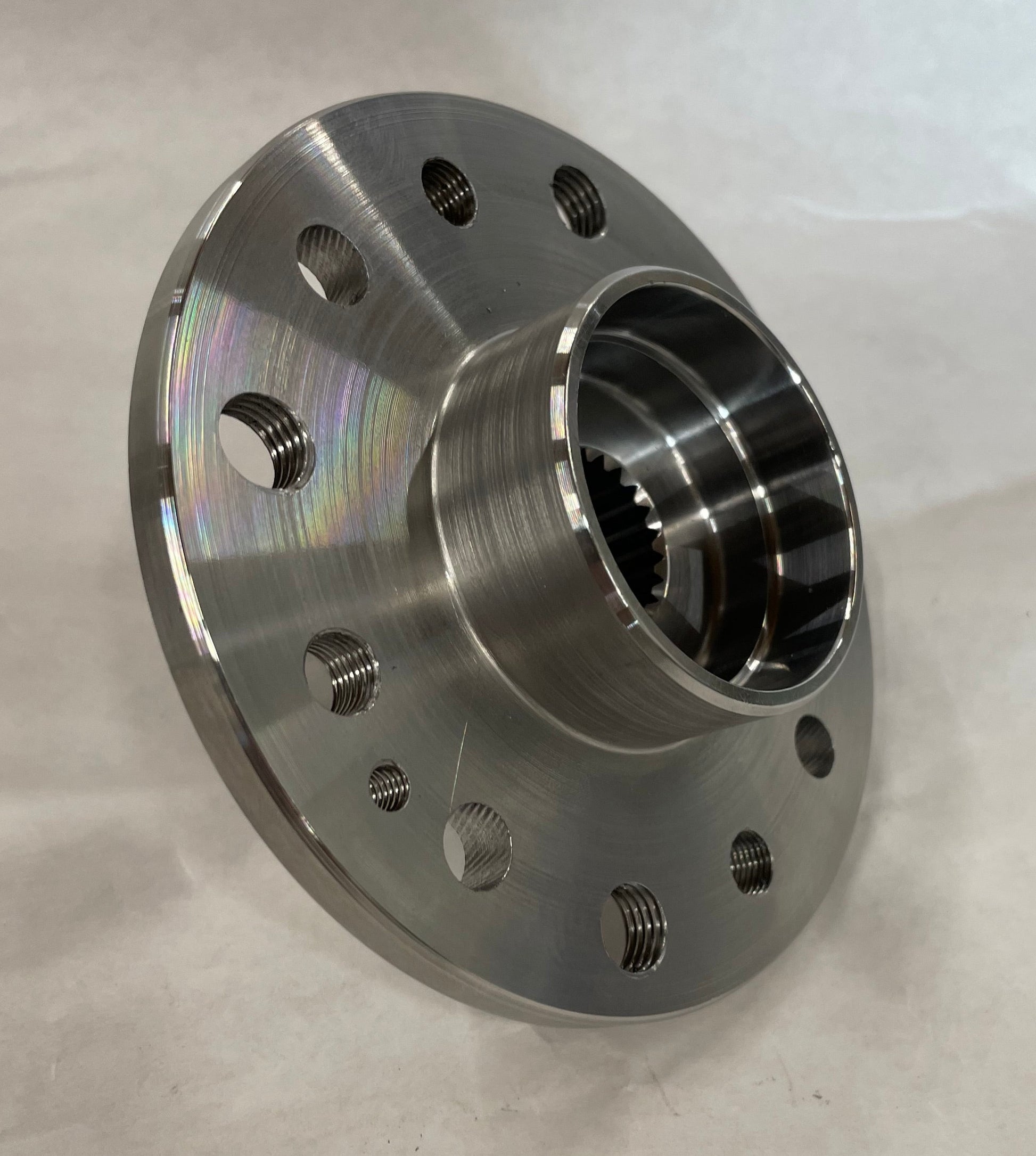

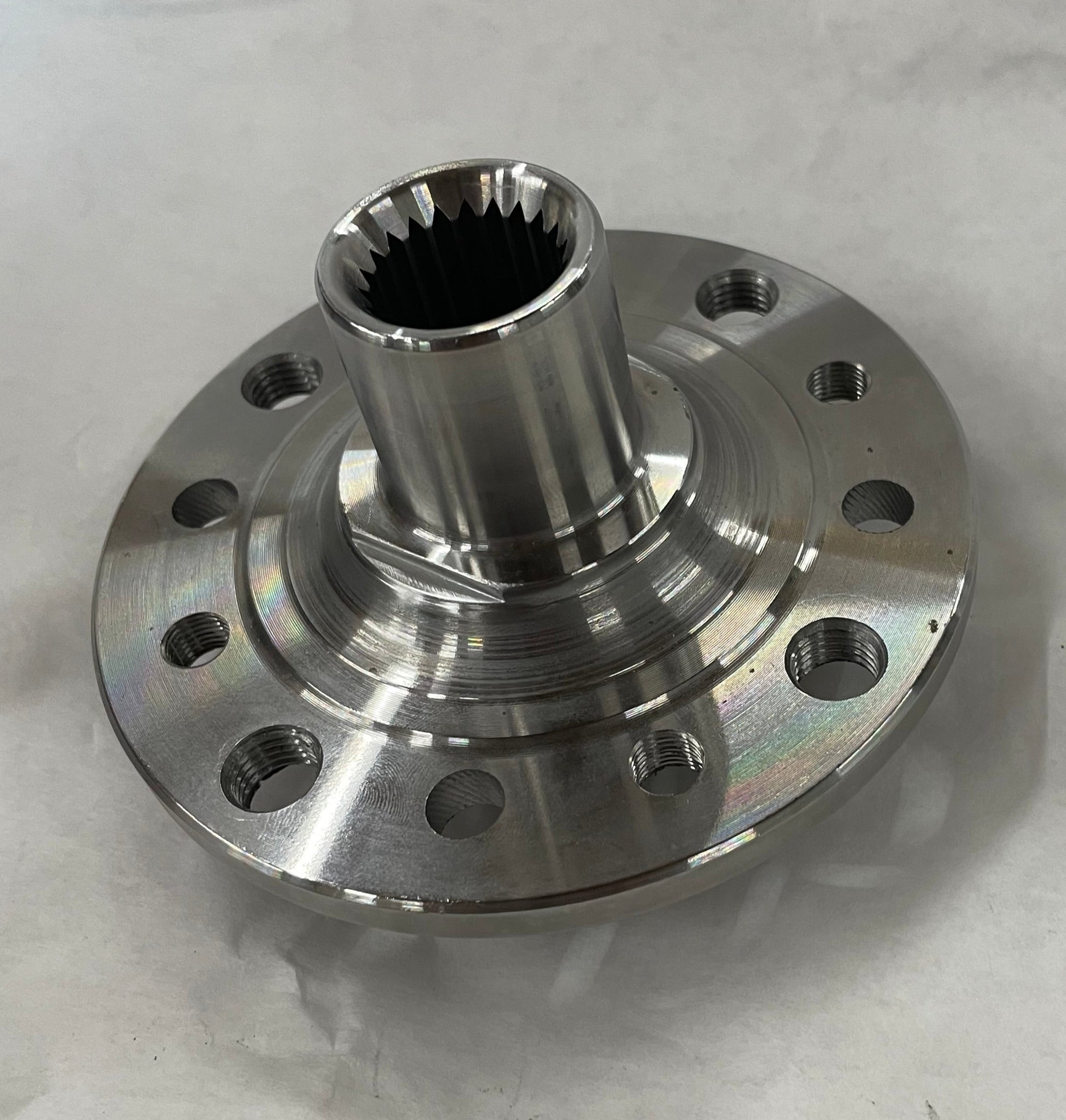

WHEEL FLANGE WITH 22 TOOTH SPLINES - 0200422

Wheel flange with 34mm bearing spigot and 22 tooth and 24.2mm OD splines.  Mates with TRE stub axles with 22 tooth splines and uses WB643437 wheel bearing.  M12x1.5 threads on a 4 x 100mm BCD, 3/8-24 threads on a 4 x 3.75" BCD, and 3/8" holes on a 4 x 3.75" BCD.

Download CAD packaging model here
